Dwg Electric Hydraulic Pipe Bender Up To 5inch Price

Product Paramentersmodel1 inch2 inch3 inch4 inch5 inchoutput10T16T18T21T21TStroke(mm)160230320380380Pipe wall thick(mm)2-3.52.75-4.53.5-64-64-6Work scope(mm)13-3422-6022-8922-10822-114Overall weight(kg)205095200230Materialductile ironductile ironductile ironductile ironductile iron【1inch】:13mm/16mm/......

Send Inquiry

Product Description

Product Paramenters

model	1 inch	2 inch	3 inch	4 inch	5 inch
output	10T	16T	18T	21T	21T
Stroke(mm)	160	230	320	380	380
Pipe wall thick(mm)	2-3.5	2.75-4.5	3.5-6	4-6	4-6
Work scope(mm)	13-34	22-60	22-89	22-108	22-114
Overall weight(kg)	20	50	95	200	230
Material	ductile iron	ductile iron	ductile iron	ductile iron	ductile iron

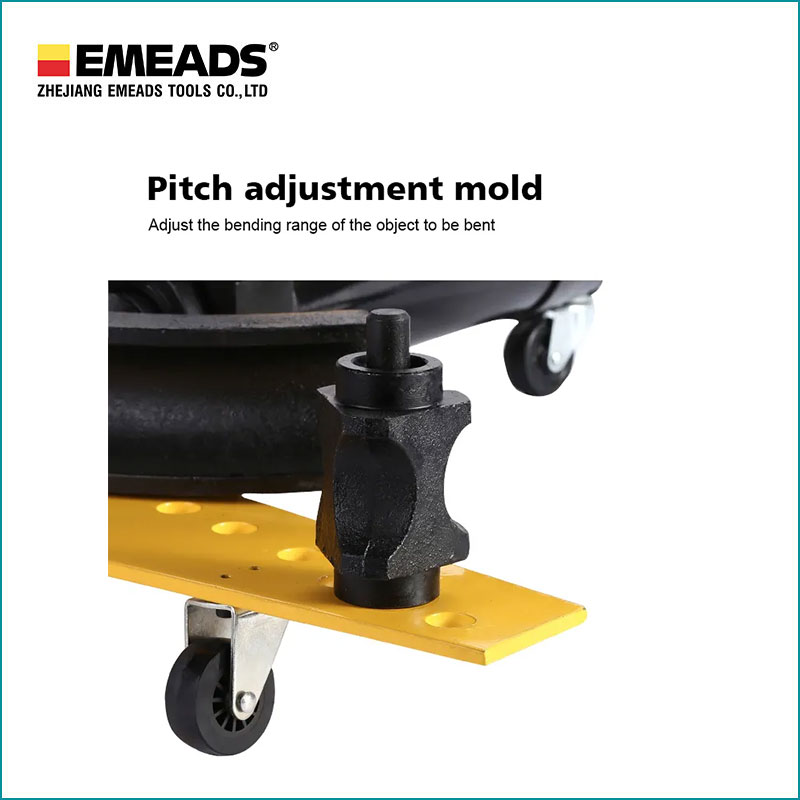

【1inch】:13mm/16mm/19mm/22mm/28mm/34mm 【2inch】:22mm/28mm/34mm/42mm/48mm/60mm Configure mold 【3inch】:22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm 【4inch】:22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm 【5inch】:22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm/ 114mm

DIE DIAMETER AND WALL THICKNESS

Reference Diameter	Pipe Wall Thickness Range	Conventional Name	Mold Specification
Φ13mm	1.5mm-4mm	2 point	1/4
Φ16mm	1.5mm-4mm	3 point	5/16
Φ19mm	1.5mm-4mm	3 point	3/8
Φ22mm	2.5mm-4mm	4 point	1/2
Φ28mm	2.5mm-4mm	6 point	3/4
Φ34mm	2.5mm-4mm	8 point	1 inch
Φ42mm	2.5mm-4mm	1.25 inch	1-1/4 inch
Φ48mm	2.5mm-4mm	1.5 inch	1-1/2 inch
Φ60mm	3.0mm-5mm	2 inch	2 inch
Φ75.5mm	3.0mm-6mm	2.5 inch	2-1/2 inch
Φ89mm	3.5mm-6mm	3 inch	3 inch
Φ108mm	4.0mm-6mm	4 inch	4 inch
Φ114mm	4.0mm-6mm	5 inch	5 inch
Selection Method	① According to their own needs to choose the diameter of the elbow, the corresponding standard die size selection pipe bender ② If there is no corresponding mold, you can choose a slightly larger size mold (such as 20mm,22mm mold) ③ Check whether the wall thickness is suitable according to the correspon- ding die size(the wall thickness can be 0.5 larger or 0.5 smaller)
Applicable Pipes	It is suitable for galvanized pipe welding, seamless steel pipe,water pipe, iron pipe, wire guide pipe, gas pipe, steel pipe and aluminum pipe; it is not suitable for bending thin-walled pipe, steel pipe not conforming to bending outer diameter and non-ferrous metal pipe

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1.Can you provide samples?

A small number of samples can be provided for testing, but the cost of sample and freight will be borne by the buyer;Sample sheet we have express, air, sea and other distribution, can be delivered to the door.

2.Can it be customized?

Can customize label, tool color, mold (blackening or electroplating), packaging, etc;

3.What is the delivery time?

The general delivery time is 30 days, please consult for details.
