Integral fire hydraulic expansion pliers

As a professional manufacturer, EMEADS has the ability to provide Integral fire hydraulic expansion pliers with high quality and competitive price. All of our products comply with international standards (ISO9001). We have gained a good reputation at home and abroad. Our products have been sold well in more than 30 countries including Japan, the United States, Australia, Italy, and the Middle East. We look forward to becoming your long-term partner in China.

Model:KJI-20CB

Send Inquiry

Product Description

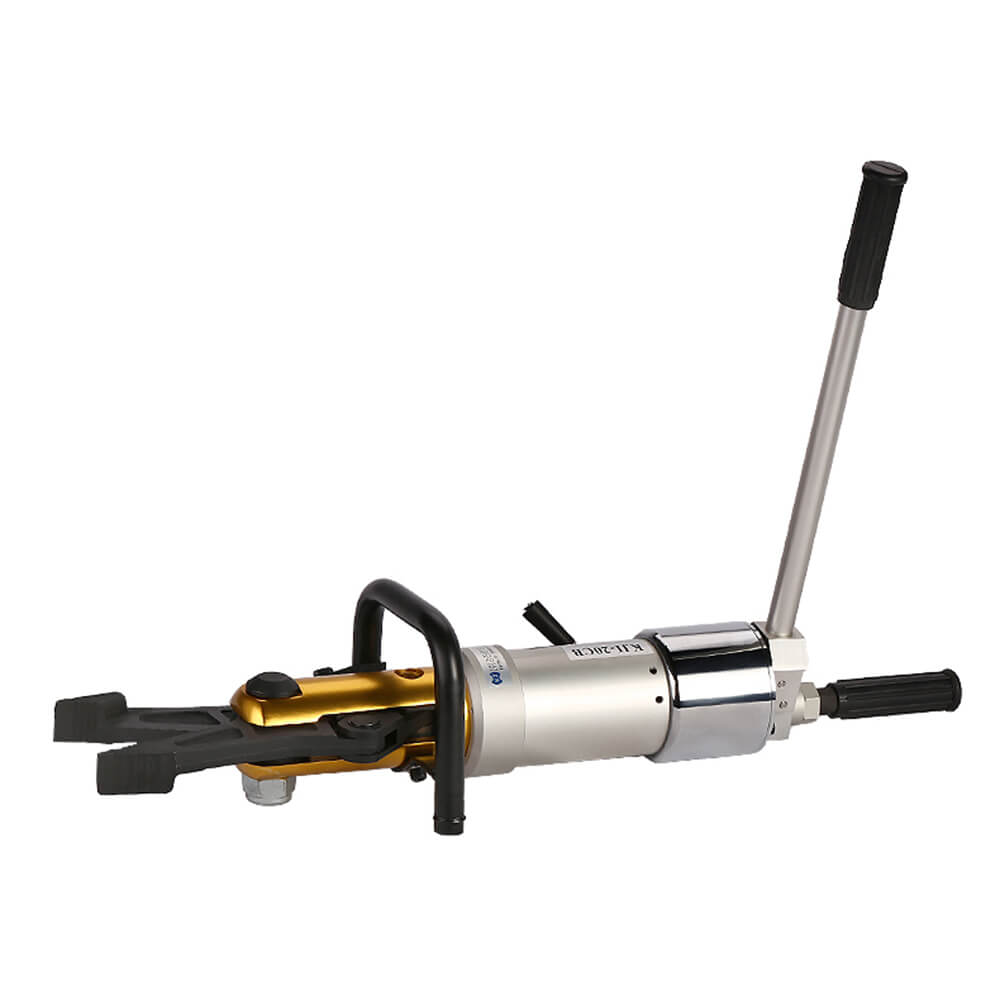

Model:KJI-20CB，Integral fire hydraulic expansion pliers.Applicable to accident rescue,It can cut off the metal structure, vehicle parts, pipes and metal plates,pry the door and deform the metal structure.Product features:The tool is integrated with the manual pump, and no external power source is needed Commodity features: the cutter and the manual pump can rotate 360 ° to adapt to different occasions and directions The tool is made of regrinding tool steel, which can be sheared, expanded and clamped Light weight, easy to carry.

Product Parameters

Technicalparameter	Maximum opening distance:≤ 160mm
	Rated working pressure: 63Mpa
	Maximum shear capacity(Q235 material) 10mm (steel plate) 20mm (round steel)
	Shear force: 18T
	Expansion force: 5.5t
	Expansion distance: 160mm
	Technical parameters rated expansion force: 24kn
	No load opening pressing times: 9 times
	No load closing pressing times: ≤ 1 time
	Handle force: ≤ 300N
	Gross weight: About 15kg
	Size: l740 x w 230 × h 175mm
Productfeatures	The tool is integrated with the manual pump, and no external power source is neededCommodity features: the cutter and the manual pump can rotate 360 ° to adapt to different occasions and directionsThe tool is made of regrinding tool steel, which can be sheared, expanded and clampedLight weight, easy to carry
Scopeapplication	Traffic accident rescue earthquake disaster rescue accident rescueSuitable for mobile rescue operationPrying the door and deforming the metal structureCut off metal structures, vehicle parts, pipes and metal plates
