Lithium Battery Electric Crimping Tool

Lithium battery electric crimping tool is used to crimp between metal conductors of cables. It is designed to make cable crimping simple. It can be used for crimping cables of different sizes and materials. It is also suitable for a variety of hydraulic systems and components. The tool is made of high quality materials and has a strong and durable structure. It is easy to use and can be used with a variety of accessories. The tool is also light and portable, easy to carry and store.

Send Inquiry

Product Description

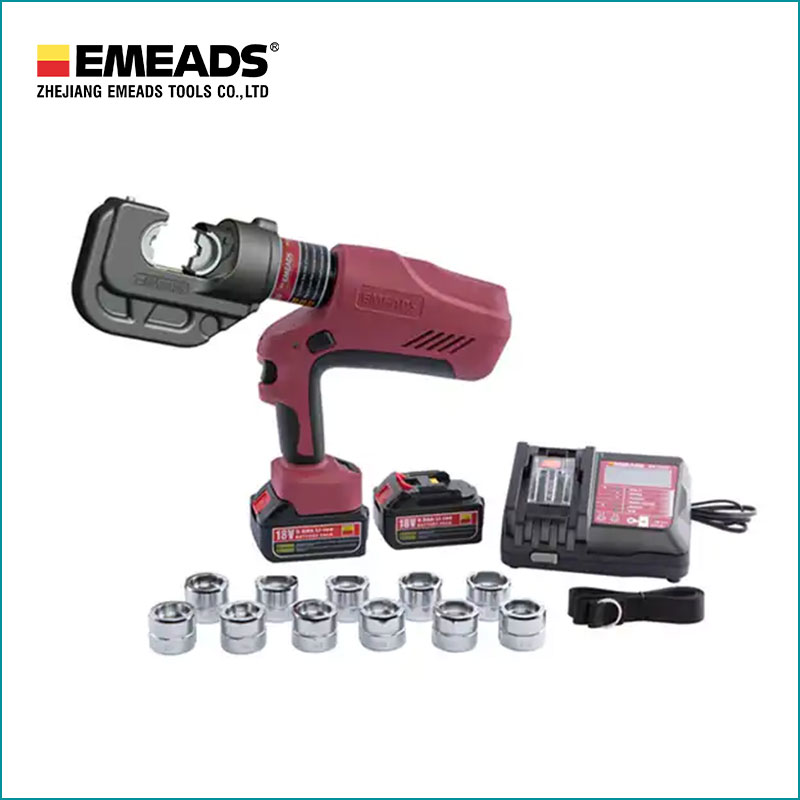

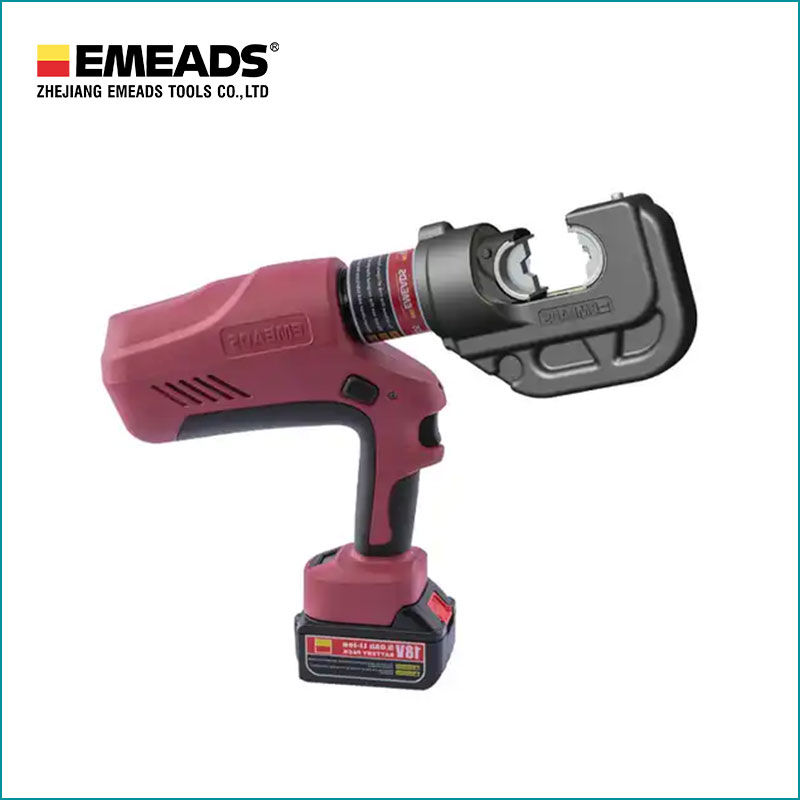

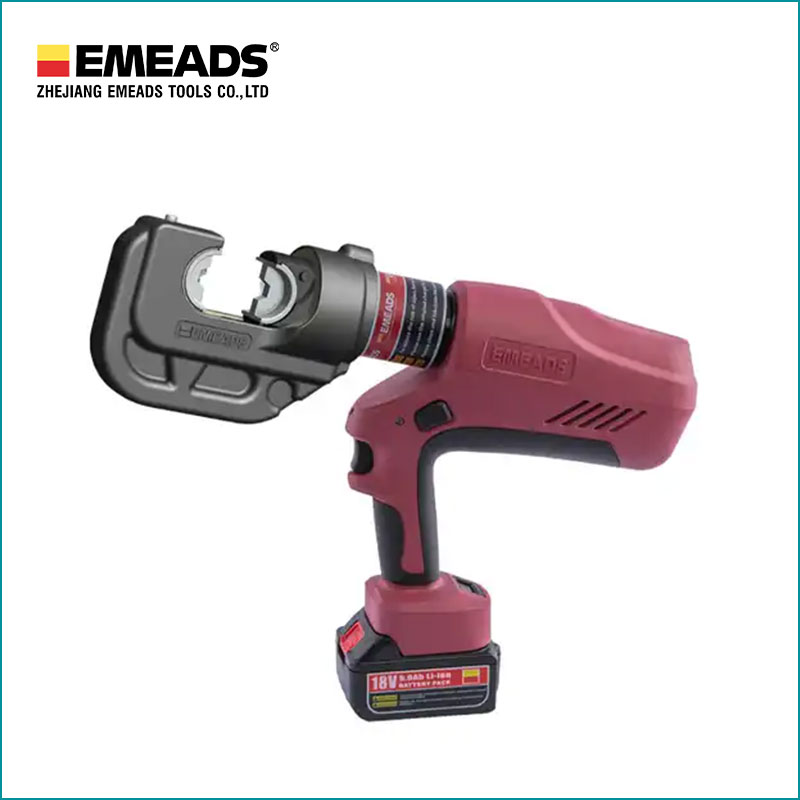

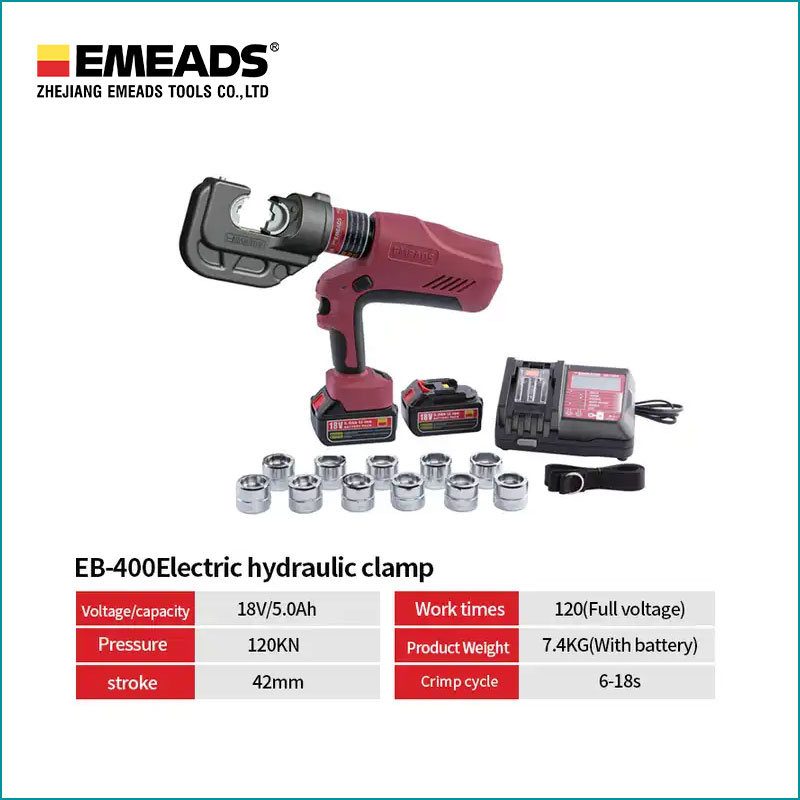

EB-400 Lithium battery Electric crimping tool provide maximum efficiency when used for high-volume dedicated cutting or crimping applications. All tools also come with two batteries, 13 sets crimping dies, shoulder strap, charger and carrying case. It is a tool for crimping Cu/Al lugs with cables from 4-400mm². It is powered by Li-ion, actuated by motor and controlled by MCU. With a high pressure hydraulic system, it is a perfect tool to be used in electrical construction field.

Features

1. 350° flip-top latch crimping head, working atany site
2. Pistol type tool body design for better balance and easy handing
3. Double Piston pump and powerful motor ensure quick crimp
4. Automatically fully retract ram and stop motor when complete crimp
5. Manually retract ram in case of need
6. LED illuminate work area & low battery charges or lacking pressure, an acoustic signal sounds and led flash
7. Li-ion battery with high capacity and require short charging time
8. A temperature sensor makes the tool stop working automatically when the temperture over 60° under long time working

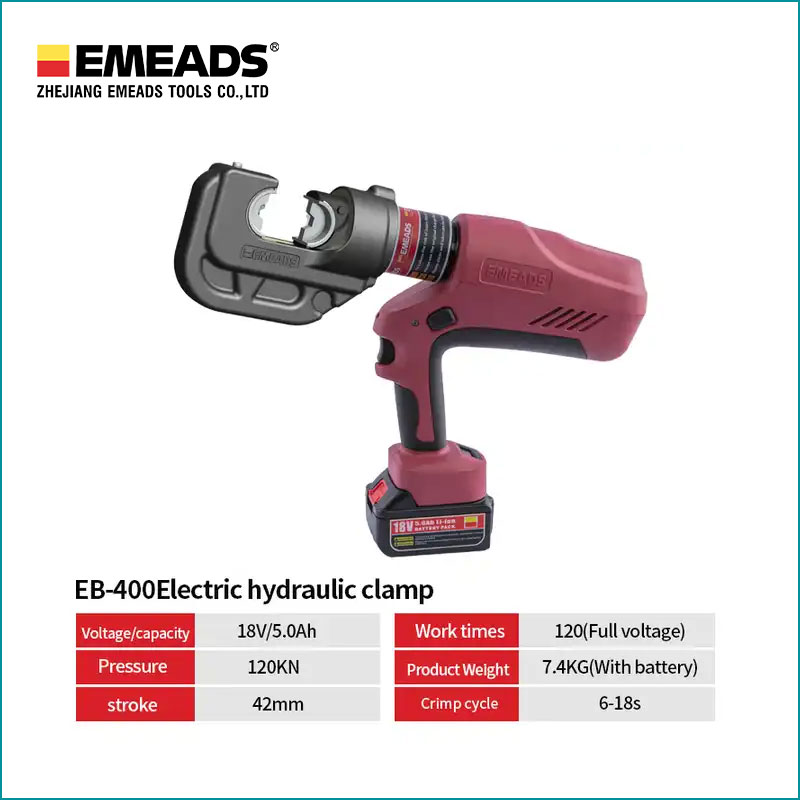

Parameter (Specification)

Max. crimping force:	120KN	Battery:	2pcs
Stroke:	42mm	Charger:	1pcs
Battery:	18v 4.0Ah Li-Ion	Charging voltage:	AC 100V〜240V; 50〜60Hz
Crimping cycle:	6s-18s(depending on the size of cable)	Charging time:	2 hours
Crimping times:	120 crimps (Cu150 mm²)	Crimping jaws(mm2):	4.10.16.25.35.50.70.95.120.150.185.240.300.400

* Microcomputer control system, automatic pressure detection when pressing, double safety protection, with three continuous computer memory pressing function operation.

* The tool is equipped with a dual plunger pump that features quick access to the connecting material and slow crimp to automatically turn to high pressure

* If deviations from the set operating pressure or low battery power are recognized, sound signals sound and indicator lights

Display flashing

* One-key control of continuous use function - Function 1: press the trigger to start working, release the trigger means to stop pressurizing, continue to increase the pressure until the jump pressure piston returns to the initial position. Function 2: Press the trigger to start working, release the trigger means to stop pressurizing, continue to increase the pressure to jump pressure piston back, press the trigger piston back to stop, continue to press the switch machine into a new pressing work.

Function 3: press the trigger to start working, loosen the trigger said stop pressure, continue to pressure the pressure rise to jump after pressing back press the trigger to stop back, continue to press the trigger to jump after the pressure not to put the trigger piston automatically stop after back to the last stop bit, can choose any size position twice in the case of not to put the trigger automatically stop location choice.

* When the temperature sensor makes the total stop working, the temperature exceeds 60℃, and the failure signal appears for a long time, which means that the tool cannot continue to work until the temperature drops to normal.
