Rotary cable stripper

-Manual peeling device for stripping insulation layer of various wires and cables; -Fast peeling speed, standard shape, accurate and adjustable, labor-saving and applicable-High efficiency is a necessary tool for power engineering operation;

Model:BK-50/BP-400

Send Inquiry

Product Description

BK-50- Operate procedure:①Wire clamping: make the stripper tool holder face up, loosen the movable support stophandwheel, pull open the support handle, put the cable into the V-groove, put the end ofthe cable to be peeled and cut at the blade level position, move the clamp block to clamp(moderate), and lock the hand wheel;②Knife adjustment: first turn the blade adjusting nut on the fixed clamp block to place the blade tip on the plane of cable cladding and wire core, and then turn the adjusting nut on thefixed clamp block to tilt the blade;③stripping and cutting: turn the handle of wire stripper, at this time, the wire stripper can turn the wrapping layer into a spiral strip and turn it out; then turn the wire stripper for a turn,the stripped spiral strip can be cut in a circular way,and the stripping and cutting can be finished.

Specifications and Dimensions

Models	BK-50/BP-400
Net / gross weight:	0.8kg/1kg
Stripping range:	Suitable for 10KV-20KV,10-50mm cables and semiconductors
Stripping depth:	Strip the end of high voltage cable with a thickness of 10 mmand middle resection
Product features:	·National patent has been obtained;·One to many, stripping faster and lighter;·Suitable for 10 to 50mm cables and semiconductors;·The peeling thickness is 1 to 12mm;·The peeling thickness is 1 to 12mm;·It can feed from any place;·It can cover almost all cables and semiconductors

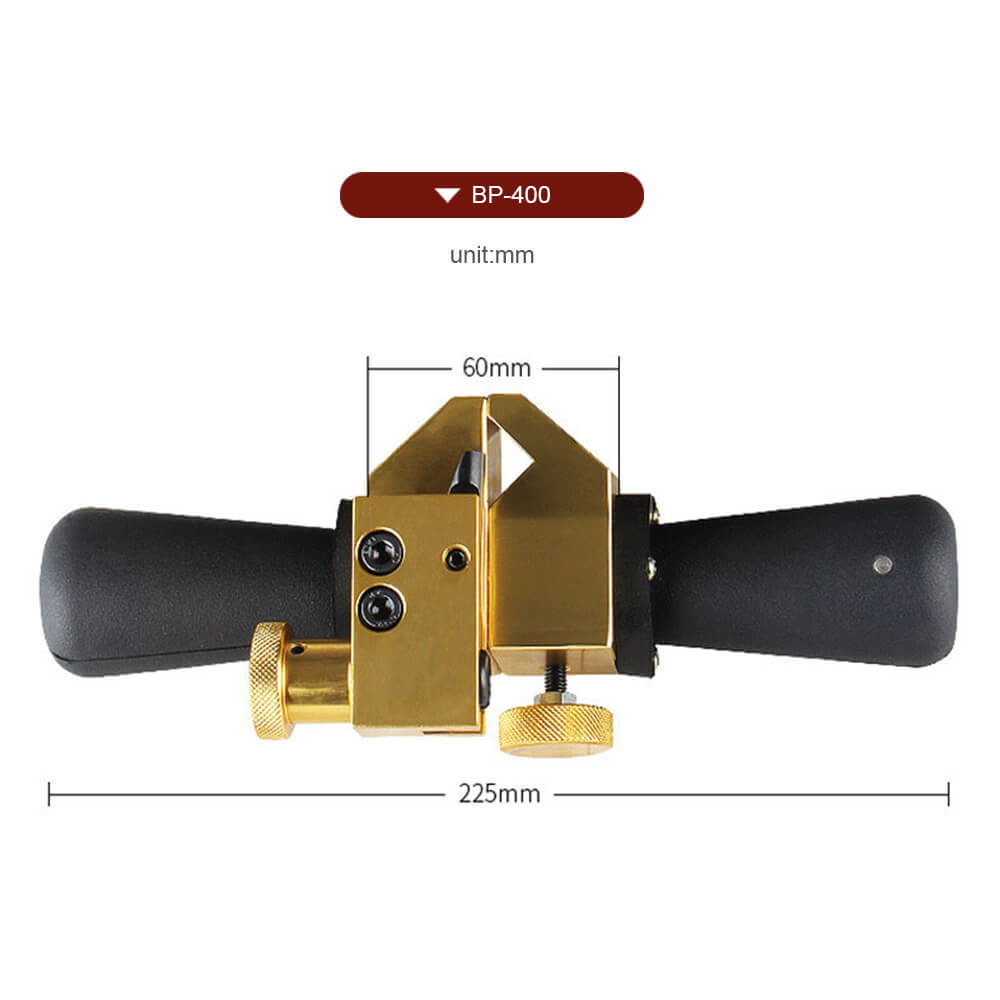

Models	BP-400
Stripping depth:	≤4.5mm
Net / gross weight:	0.8kg/1kg
Packing:	Oxford bag
Scope application:	Under 30 mm copper aluminum cable
Product features:	·Manual peeling device for stripping insulation layer of various wires and cables;·Fast peeling speed, standard shape, accurate and adjustable, labor-saving and applicable;·High efficiency is a necessary tool for power engineering operation
Operate procedure:	① Wire clamping: make the stripper tool holder face up, loosen the movable support stop handwheel, pull open the support handle, put the cable into the V-groove, put the end of the cable to be peeled and cut at the blade level position, move the clamp block to clamp (moderate), and lock the hand wheel;② Knife adjustment: first turn the blade adjusting nut on the fixed clamp block to place theblade tip on the plane of cable cladding and wire core, and then turn the adjusting nut on the fixed clamp block to tilt the blade;③ Stripping and cutting: turn the handle of wire stripper, at this time, the wire stripper can turn the wrapping layer into a spiral strip and turn it out; then turn the wire stripper for a turn, the stripped spiral strip can be cut in a circular way, and the stripping and cutting can be finished.
Note: the blade shall not touch the metal layer of the cable, and it is strictly forbidden to peel the copper aluminum wire from the blade part! Please operate in a standardized way!If the blade angle collapse caused by cutting to the metal layer is not a quality problem! Please know! Thank you!
